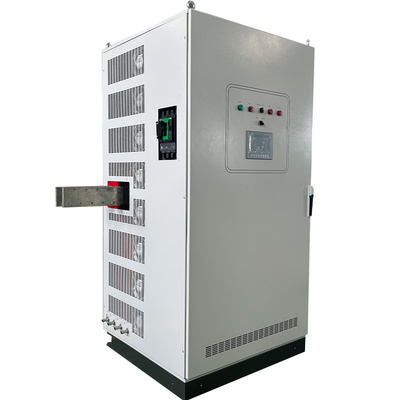

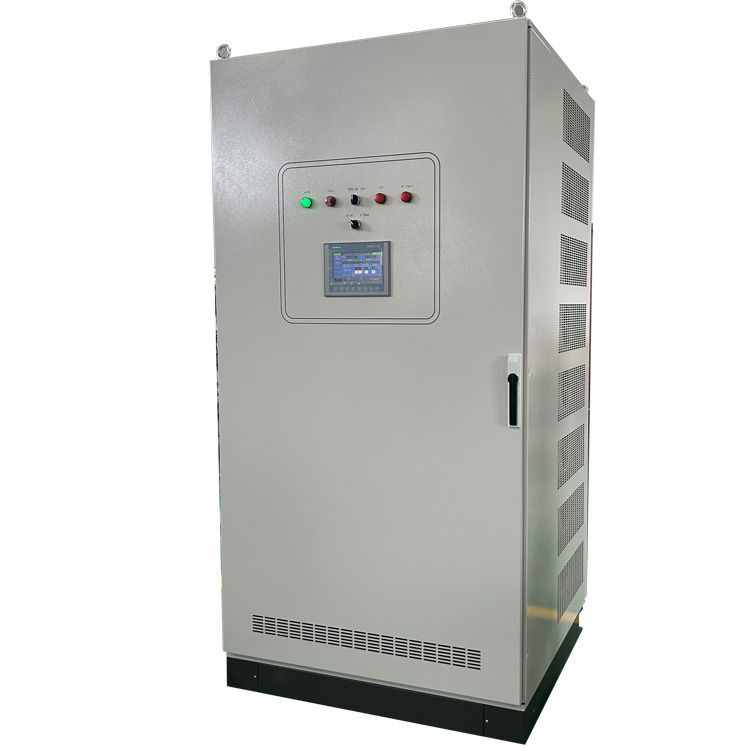

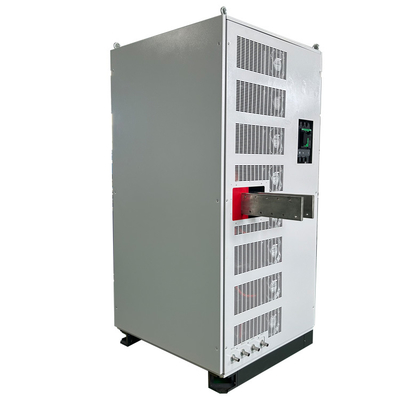

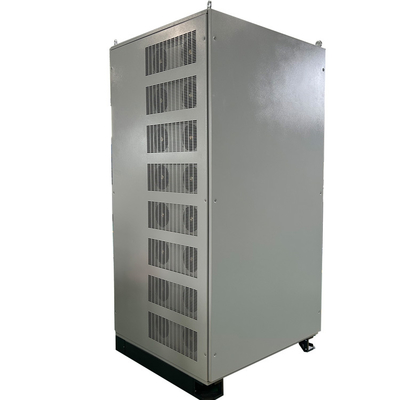

15V 12000A DC Power Supply for Electrochemical Machining

Markenbezeichnung:	Xingtongli
Modellnummer:	GKD15-12000CVC
MOQ:	1pcs
Preis:	12860-15430$/unit
Verpackungsdetails:	strong plywood standard exporting package
Zahlungsbedingungen:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Place of Origin:

China

Zertifizierung:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Hervorheben:

15V DC power supply for electrochemical machining

12000A electroplating power supply

high current DC power supply with warranty

Produkt-Beschreibung

15V 12000A DC Power Supply for Electrochemical Machining

This 15V 12000A DC power supply is specifically engineered for Electrochemical Machining (ECM) applications. With a 480V three-phase input, it delivers ultra-high current output with exceptional stability and low ripple, ensuring precise material removal and superior surface finish. The unit features advanced control technology, robust cooling systems, and comprehensive protection functions, making it ideal for demanding industrial environments.

Technical Parameters

Input Power: Three-phase 480V AC ±15%, 50/60Hz
Output Capability:
- Voltage: DC 0-15V continuously adjustable
- Current: DC 0-12000A continuously adjustable
- Power: Max. 180kW (15V × 12000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (high-frequency IGBT soft-switching technology)
Cooling System: Intelligent temperature-controlled fan (low noise, load-adaptive speed adjustment)
Communication Interface: DP interface (RS485, Modbus protocol support)
Protection Features: Over-voltage, over-current, short-circuit, overheating, input surge protection
Control Modes: Local keypad control / remote communication control (auto CC/CV switching)
Display Interface: LCD screen (real-time voltage, current, fault codes)
Operating Temperature: -10℃ to +45℃
Protection Rating: IP20 (basic dust protection)

Typical Applications

Small-Batch Electroplating: Gold/silver plating for jewelry, nickel plating for hardware accessories.
Electrolytic Repair: Mold surface restoration, metal part derusting.
Laboratory Research: Electrochemical experiments, power supply for small electrolytic cells.
Vocational Training: Electroplating process teaching equipment for technical institutes.
