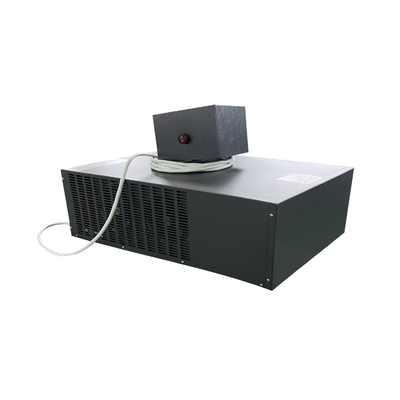

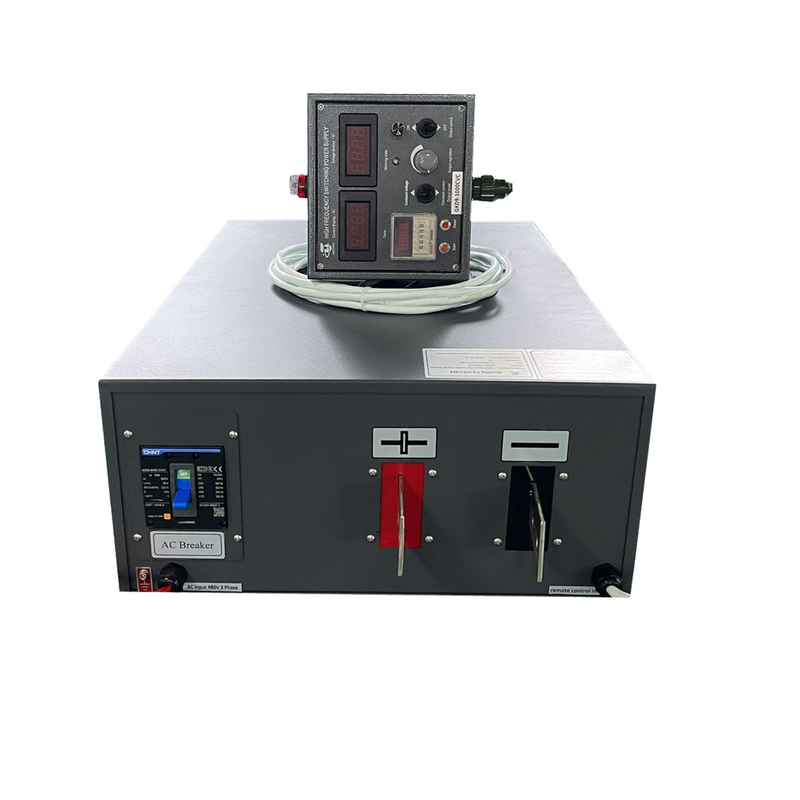

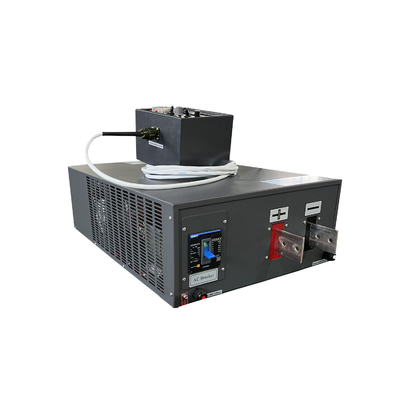

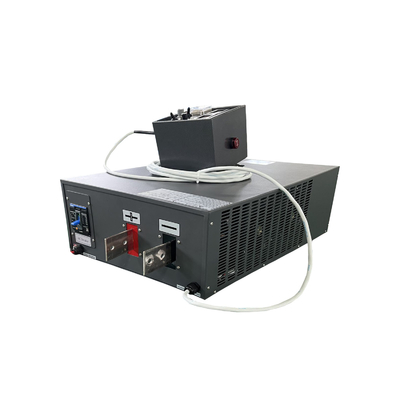

9V 1000A IGBT Rectifier — Stable Output, High Efficiency

Markenbezeichnung:	Xingtongli
Modellnummer:	GKD9-1000CVC
MOQ:	1pcs
Preis:	780-1030$/unit
Verpackungsdetails:	strong plywood standard exporting package
Zahlungsbedingungen:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Place of Origin:

China

Zertifizierung:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Hervorheben:

9V IGBT rectifier for electroplating

1000A electroplating power supply

high efficiency IGBT rectifier

Produkt-Beschreibung

9V 1000A IGBT Rectifier — Stable Output, High Efficiency

This 9V 1000A industrial rectifier is designed for electroplating, electroforming, and other high-current DC applications. Featuring advanced IGBT technology, it delivers stable output, high efficiency, and long-term reliability. Available with air or water cooling to suit various working environments.

Technical Specifications

Input Power: Three-phase 480V AC ±15%, 50/60Hz
Output Capability:
- Voltage: DC 0-9V continuously adjustable
- Current: DC 0-1000A continuously adjustable
- Power: Max. 9kW (9V × 1000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥90% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
