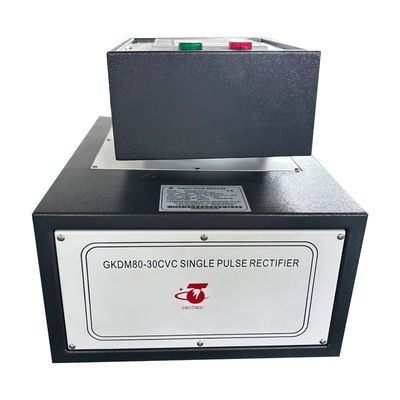

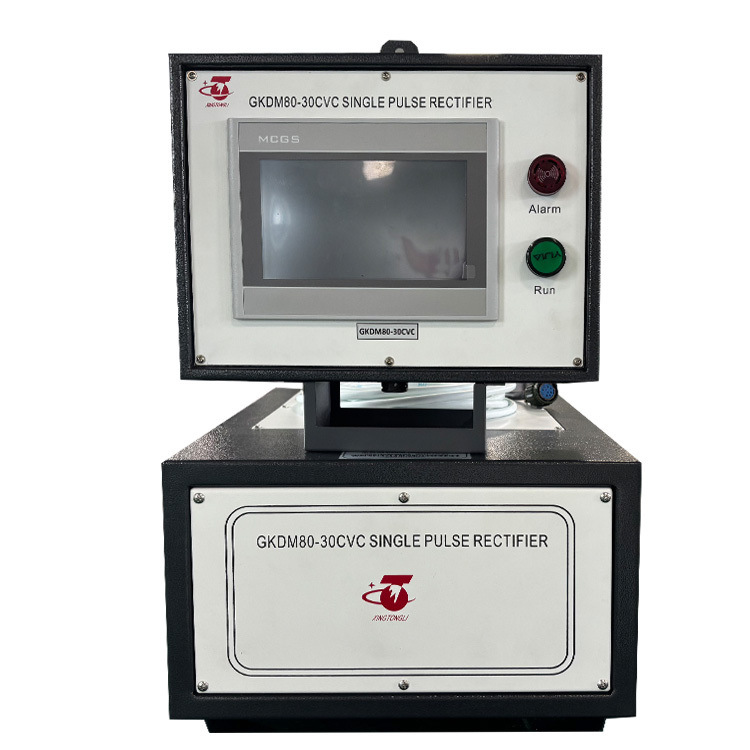

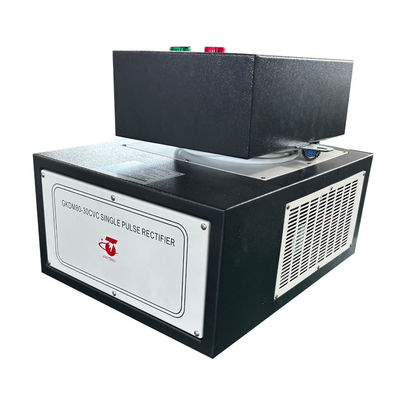

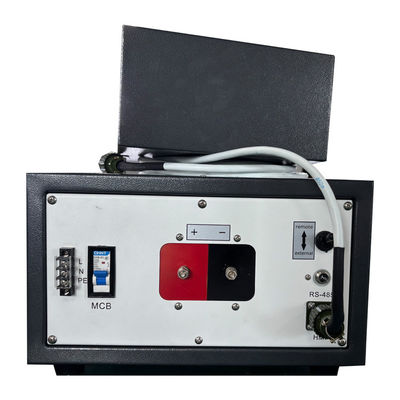

Name: 80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKDM80-30CVC
Price: 6,000.00 USD
Availability: InStock

Markenbezeichnung:	Xingtongli
Modellnummer:	GKDM80-30CVC
MOQ:	1pcs
Preis:	5500-6500$/unit
Verpackungsdetails:	Starkes Exportpaket für Sperrholz -Standard
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

CE ISO9001

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Produkt-Beschreibung

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

High-performance 80V 30A single pulse power supply specially designed for jewelry electroplating. Provides stable and precise DC output, ensuring smooth plating, bright finishes, and consistent quality for small and delicate items. Compact, easy to operate, ideal for workshops and small-scale production.

Technical Specifications

Input Power: single-phase 240V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-80V continuously adjustable
- Current: DC 0-30A continuously adjustable
- Power: Max.2.4KW (80V ×30A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；remote box control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.

Umbauten:

Einzelheiten Zu Den Produkten

Haus > Produits >

Galvanisierungsstromversorgung

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

Alle Kategorien

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

Markenbezeichnung:	Xingtongli
Modellnummer:	GKDM80-30CVC
MOQ:	1pcs
Preis:	5500-6500$/unit
Verpackungsdetails:	Starkes Exportpaket für Sperrholz -Standard
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

CHINA

Markenname:

Xingtongli

Zertifizierung:

CE ISO9001

Modellnummer:

GKDM80-30CVC

Min Bestellmenge:

1pcs

Preis:

5500-6500$/unit

Verpackung Informationen:

Starkes Exportpaket für Sperrholz -Standard

Lieferzeit:

5-30 Arbeitstage

Zahlungsbedingungen:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Produkt-Beschreibung

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

Technical Specifications

Input Power: single-phase 240V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-80V continuously adjustable
- Current: DC 0-30A continuously adjustable
- Power: Max.2.4KW (80V ×30A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；remote box control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
