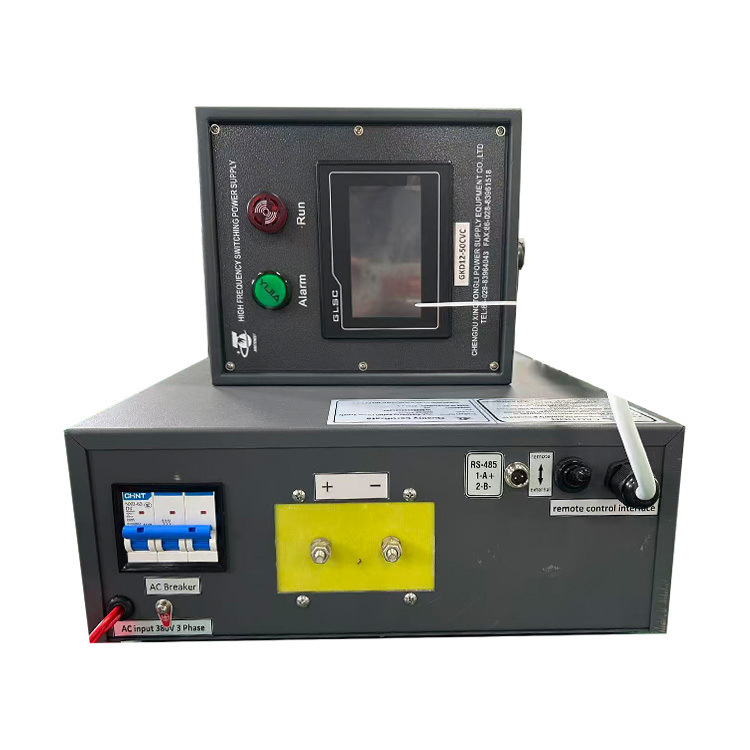

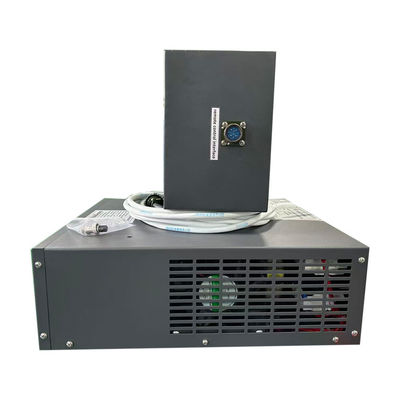

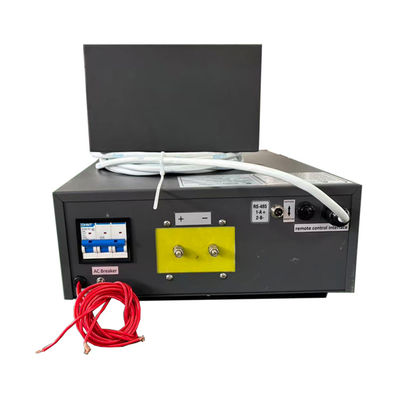

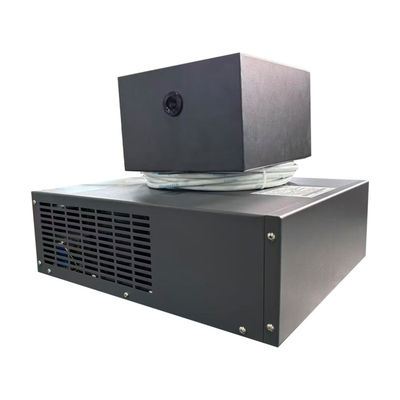

Name: 12V 50A Remote Programmable Rectifier Power Supply for Electroplating
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD12-50CVC
Price: 650.00 USD
Availability: InStock

Markenbezeichnung:	Xingtongli
Modellnummer:	GKD12-50CVC
MOQ:	1pcs
Preis:	500-800$/unit
Verpackungsdetails:	Starkes Exportpaket für Sperrholz -Standard
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

CE ISO9001

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Produkt-Beschreibung

12V 50A Remote Programmable Rectifier Power Supply for Electroplating

The 12V 50A remote programmable rectifier is designed for precise electroplating, laboratory testing, and industrial applications. With remote control and programmable functions, it allows accurate adjustment of voltage and current, data recording, and automated operation. Featuring stable DC output, compact design, and high reliability, it ensures consistent quality and easy integration with control systems.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-50A continuously adjustable
- Power: Max.600W (12V ×50A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control

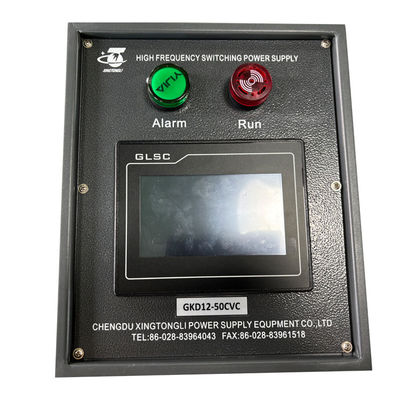

Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
