Name: 30V 100A Reversing DC Power Supply with 220V Input for Electroplating
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD15-5000CVC
Price: 1,345.00 USD
Availability: InStock

Markenbezeichnung:	Xingtongli
Modellnummer:	GKD15-5000CVC
MOQ:	1Stk
Preis:	1290-1400$/unit
Verpackungsdetails:	Starkes Exportpaket für Sperrholz -Standard
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE ISO9001

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Hervorheben:

30V 100A electroplating power supply

reversing DC power supply 220V

electroplating power supply with warranty

Produkt-Beschreibung

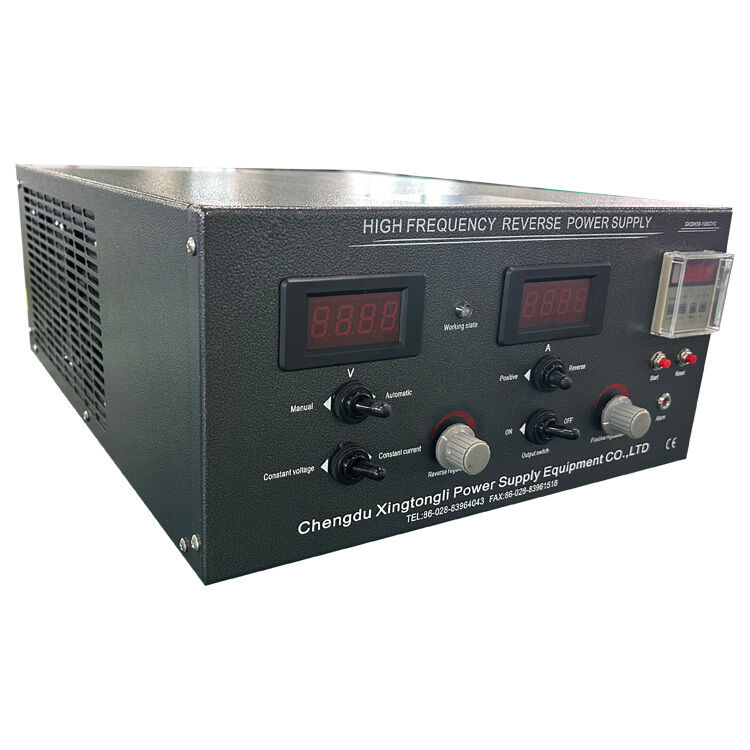

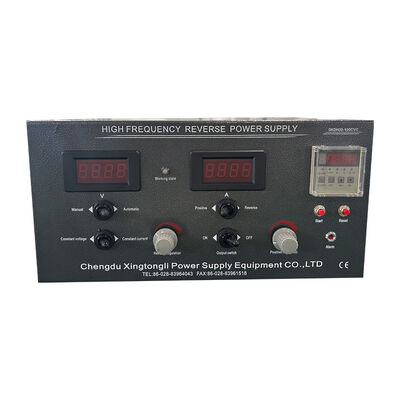

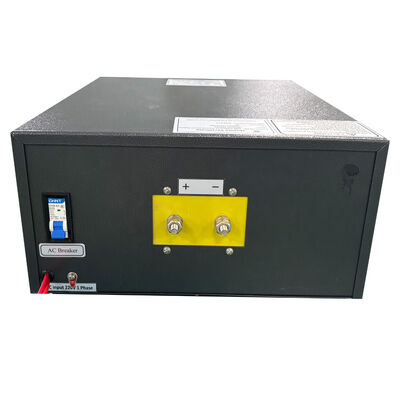

30V 100A Reversing DC Power Supply with 220V Input for Electroplating

This 30V 100A reversing DC power supply features automatic polarity reversal for enhanced coating uniformity and improved electroplating efficiency. Designed for 220V AC input, it offers stable, low-ripple DC output suitable for plating, PCB processing, electrolysis, and other industrial applications. With advanced control technology, it supports adjustable reversal timing, smooth switching, and full protection including over-voltage, over-current, over-temperature, and short-circuit protection, ensuring reliable and long-term operation.

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-30V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max.3KW (30V *100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
