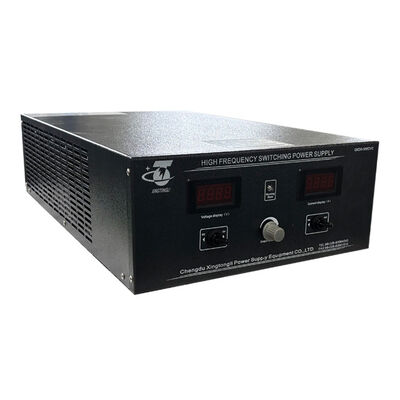

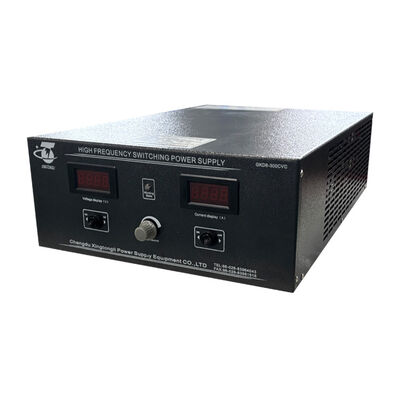

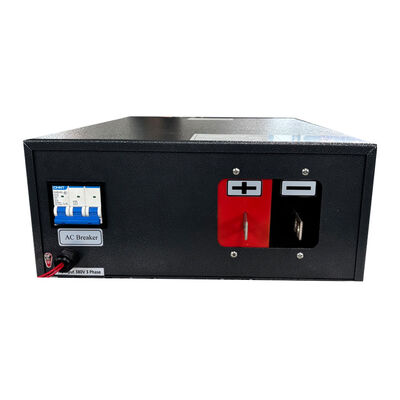

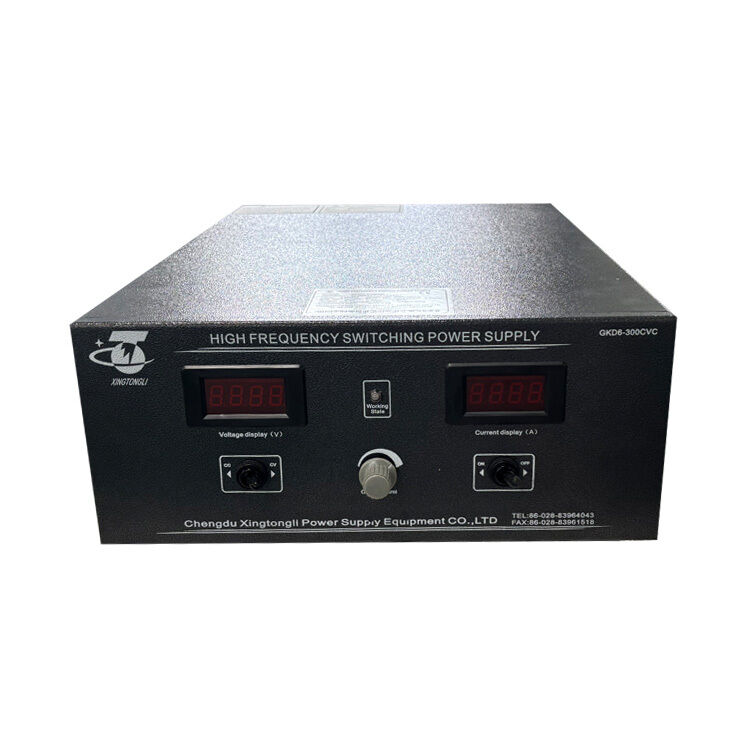

Name: 6V 300A Pure DC Power Supply for Jewelry Plating with 380V AC Input
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD6-300CVC
Price: 650.00 USD
Availability: InStock

Markenbezeichnung:	Xingtongli
Modellnummer:	GKD6-300CVC
MOQ:	1Stk
Preis:	600-700$/unit
Verpackungsdetails:	Starkes Exportpaket für Sperrholz -Standard
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE ISO9001

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Hervorheben:

6V 300A electroplating power supply

pure DC jewelry plating power supply

380V AC input power supply

Produkt-Beschreibung

6V 300A Pure DC Power Supply for Jewelry Plating with 380V AC Input

This 6V 300A pure DC power supply is specially designed for jewelry plating, delivering stable, low-ripple DC output to ensure uniform and high-quality coating of gold, silver, and other precious metals. With 380V three-phase input, it features IGBT-based technology for high efficiency and fast response. Adjustable current and voltage settings, combined with built-in protections including over-voltage, over-current, over-temperature, short-circuit, and grounding protection, make it safe and reliable for continuous plating operations.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-6V continuously adjustable
- Current: DC 0-300A continuously adjustable
- Power: Max.1.8KW (6V *300A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
