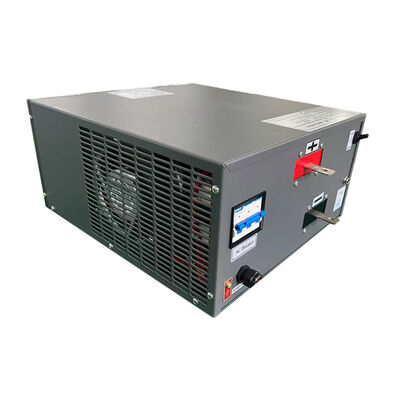

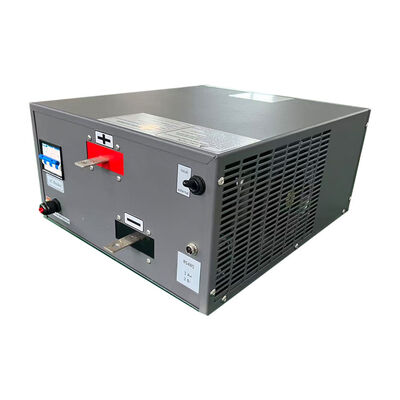

Name: High-Current 24V 250A Programmable DC Source 380V Input
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD24-250CVC
Price: 1,250.00 USD
Availability: InStock

Markenbezeichnung:	Xingtongli
Modellnummer:	GKD24-250CVC
MOQ:	1Stk
Preis:	1150-1350$/unit
Verpackungsdetails:	Starkes Exportpaket für Sperrholz -Standard
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE ISO9001

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Hervorheben:

24V 250A programmable DC power supply

high-current electroplating power supply

380V input DC source

Produkt-Beschreibung

High-Current 24V 250A Programmable DC Source 380V Input

This 24V 250A programmable DC power supply is designed for industrial applications such as electroplating, electrolysis, battery testing, and other DC processes. Supporting 380V three-phase input, it provides stable, low-ripple, and fully programmable output with adjustable voltage, current, ramping, and timing settings. Built with advanced IGBT technology, it ensures high efficiency, fast response, and reliable long-term operation, with complete protection against over-voltage, over-current, over-temperature, short-circuit, and grounding faults.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-24V continuously adjustable
- Current: DC 0-250A continuously adjustable
- Power: Max.6KW (24V *250A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.

Umbauten:

Einzelheiten Zu Den Produkten

Haus > Produits >

Galvanisierungsstromversorgung

High-Current 24V 250A Programmable DC Source 380V Input

Alle Kategorien

High-Current 24V 250A Programmable DC Source 380V Input

Markenbezeichnung:	Xingtongli
Modellnummer:	GKD24-250CVC
MOQ:	1Stk
Preis:	1150-1350$/unit
Verpackungsdetails:	Starkes Exportpaket für Sperrholz -Standard
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Markenname:

Xingtongli

Zertifizierung:

CE ISO9001

Modellnummer:

GKD24-250CVC

Min Bestellmenge:

1Stk

Preis:

1150-1350$/unit

Verpackung Informationen:

Starkes Exportpaket für Sperrholz -Standard

Lieferzeit:

5-30 Arbeitstage

Zahlungsbedingungen:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Hervorheben:

24V 250A programmable DC power supply

high-current electroplating power supply

380V input DC source

Produkt-Beschreibung

High-Current 24V 250A Programmable DC Source 380V Input

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-24V continuously adjustable
- Current: DC 0-250A continuously adjustable
- Power: Max.6KW (24V *250A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
