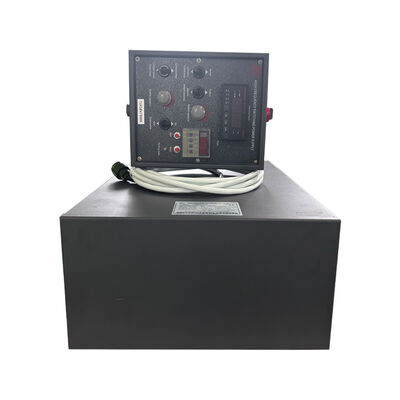

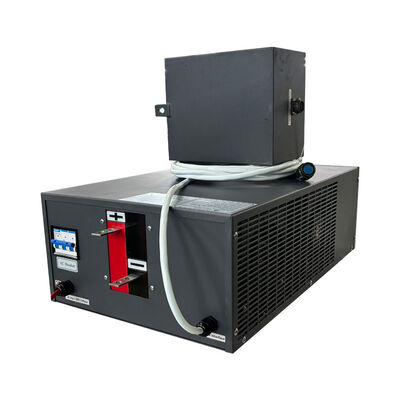

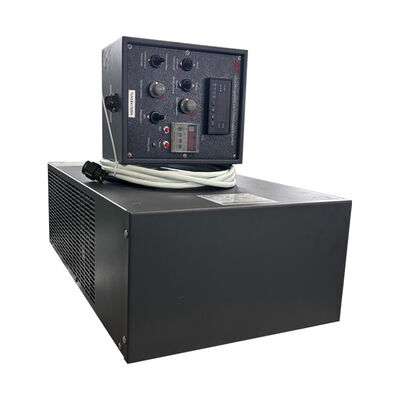

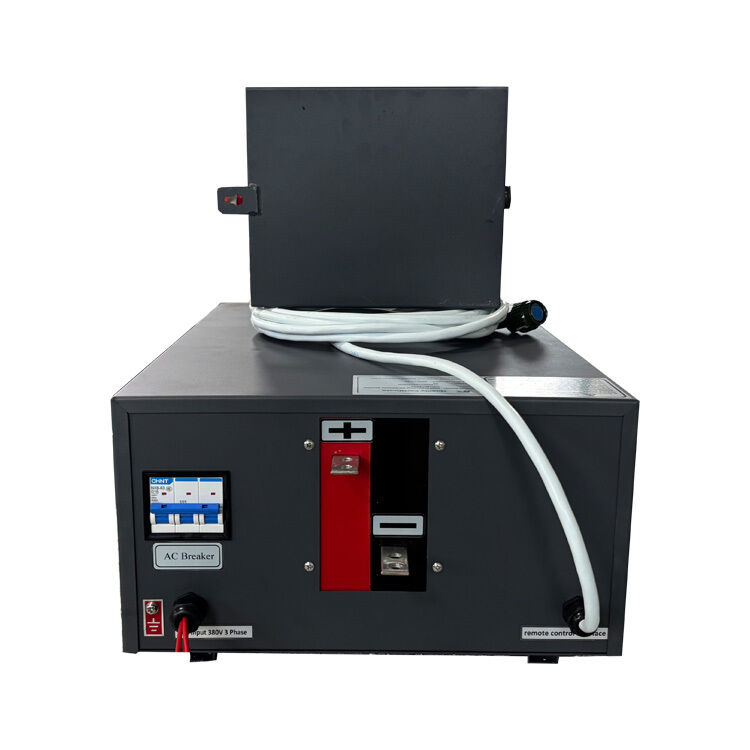

Name: 18V 300A Reversing Power Supply with 380V 3-Phase Input Heavy-Duty DC System
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKDH18-300CVC
Price: 1,445.00 USD
Availability: InStock

Markenbezeichnung:	Xingtongli
Modellnummer:	GKDH18-300CVC
MOQ:	1Stk
Preis:	1290-1600$/unit
Verpackungsdetails:	Starkes Exportpaket für Sperrholz -Standard
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE ISO9001

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Hervorheben:

18V 300A electroplating power supply

heavy-duty DC power system

3-phase input reversing power supply

Produkt-Beschreibung

18V 300A Reversing Power Supply with 380V 3-Phase Input Heavy-Duty DC System

This 18V 300A reversing power supply is engineered for industrial processes requiring periodic polarity switching, such as electrolysis, electrocoagulation, and specialized plating applications. Powered by a stable 380V three-phase input, the unit features advanced IGBT technology, fast and reliable polarity reversal, and low-ripple DC output. Its durable design ensures consistent performance under continuous heavy-load operation, while multiple protection functions safeguard both equipment and operators. Ideal for production environments that need precise control and enhanced process efficiency.

Technical Specifications
- Input Power: three-phase 380V AC ±5%, 50/60Hz
- Output Capability:
  - Voltage: DC 0-±18V continuously adjustable
  - Current: DC 0-±300A continuously adjustable
  - Power: Max.5.4KW (18V ×300A)
- Regulation Accuracy: Voltage ±1%, Current ±1%
- Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
- Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
- Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
- Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
- Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
- Operating Temperature: -10℃ to +50℃
- Protection Rating: IP21 (dust and drip-proof)
Key Advantages
- Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
- Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
- Compact Design: Space-saving and lightweight, suitable for workshops or labs.
- Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
- High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.
Applications
- Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
- Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
- Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
- R & D & Education: Electrochemical experiments in universities and research institutes.
- Umbauten:
  DC-Gleichrichter für die Galvanisierung

  Galvanisierungsgleichrichter

  Überzugstromversorgung

Einzelheiten Zu Den Produkten

Haus > Produits >

Galvanisierungsstromversorgung

18V 300A Reversing Power Supply with 380V 3-Phase Input Heavy-Duty DC System

Alle Kategorien

Galvanisierungsstromversorgung

Elektrolysestromversorgung

Anodisierungsstromversorgung

Oxidations-Gleichrichter

Stromversorgung des elektrischen Polierens

Elektrokoagulations-Stromversorgung

PWB-Gleichrichter

Elektrophorese-Stromversorgung

Hochfrequenzschaltnetzteil

Programmierbare DC-Stromversorgung

Hochspannungsdc-Stromversorgung

18V 300A Reversing Power Supply with 380V 3-Phase Input Heavy-Duty DC System

Markenbezeichnung:	Xingtongli
Modellnummer:	GKDH18-300CVC
MOQ:	1Stk
Preis:	1290-1600$/unit
Verpackungsdetails:	Starkes Exportpaket für Sperrholz -Standard
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Markenname:

Xingtongli

Zertifizierung:

CE ISO9001

Modellnummer:

GKDH18-300CVC

Min Bestellmenge:

1Stk

Preis:

1290-1600$/unit

Verpackung Informationen:

Starkes Exportpaket für Sperrholz -Standard

Lieferzeit:

5-30 Arbeitstage

Zahlungsbedingungen:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Hervorheben:

18V 300A electroplating power supply

heavy-duty DC power system

3-phase input reversing power supply

Produkt-Beschreibung

18V 300A Reversing Power Supply with 380V 3-Phase Input Heavy-Duty DC System

This 18V 300A reversing power supply is engineered for industrial processes requiring periodic polarity switching, such as electrolysis, electrocoagulation, and specialized plating applications. Powered by a stable 380V three-phase input, the unit features advanced IGBT technology, fast and reliable polarity reversal, and low-ripple DC output. Its durable design ensures consistent performance under continuous heavy-load operation, while multiple protection functions safeguard both equipment and operators. Ideal for production environments that need precise control and enhanced process efficiency.

Technical Specifications
- Input Power: three-phase 380V AC ±5%, 50/60Hz
- Output Capability:
  - Voltage: DC 0-±18V continuously adjustable
  - Current: DC 0-±300A continuously adjustable
  - Power: Max.5.4KW (18V ×300A)
- Regulation Accuracy: Voltage ±1%, Current ±1%
- Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
- Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
- Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
- Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
- Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
- Operating Temperature: -10℃ to +50℃
- Protection Rating: IP21 (dust and drip-proof)
Key Advantages
- Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
- Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
- Compact Design: Space-saving and lightweight, suitable for workshops or labs.
- Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
- High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.
Applications
- Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
- Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
- Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
- R & D & Education: Electrochemical experiments in universities and research institutes.
- Umbauten:
  DC-Gleichrichter für die Galvanisierung

  Galvanisierungsgleichrichter

  Überzugstromversorgung
