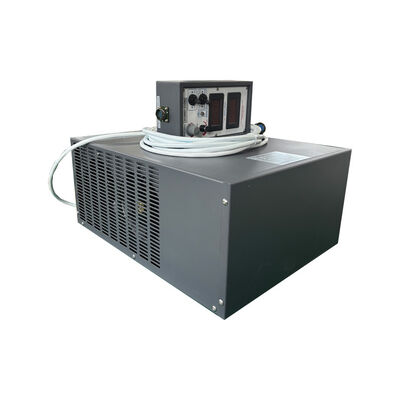

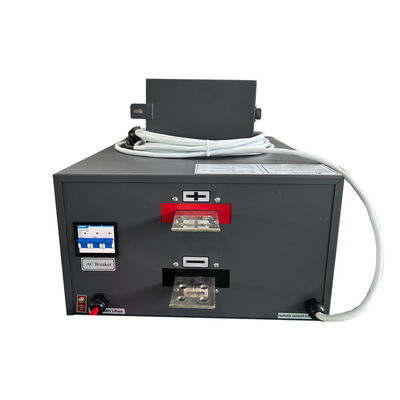

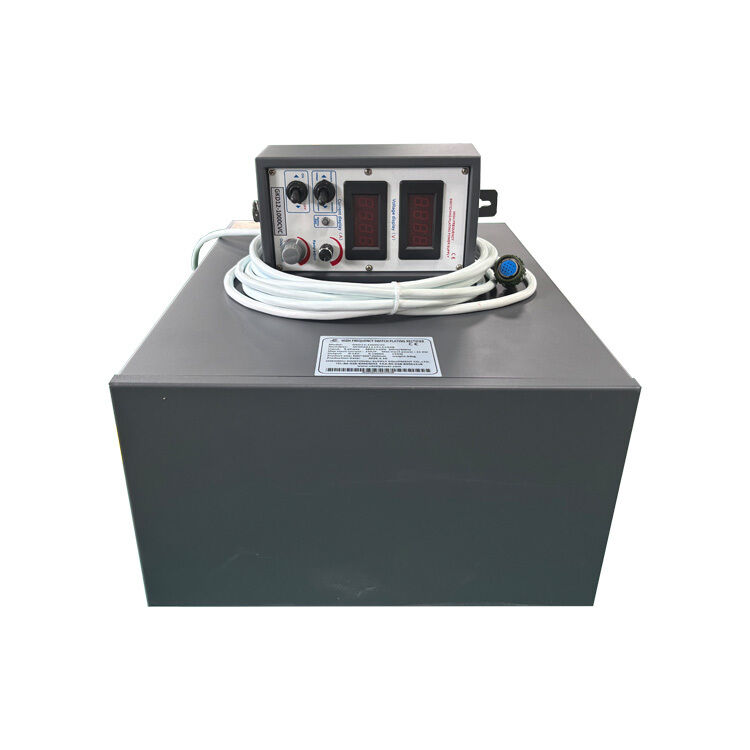

Name: 12V 1000A Plating Rectifier for Copper Electroplating 380V Three Phase Input High Efficiency DC Power Supply
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD12-1000CVC
Price: 1,125.00 USD
Availability: InStock

Markenbezeichnung:	Xingtongli
Modellnummer:	GKD12-1000CVC
MOQ:	1Stk
Preis:	950-1300$/unit
Verpackungsdetails:	Standard-Exportpaket aus starkem Sperrholz
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE ISO9001

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Hervorheben:

12V 1000A plating rectifier

copper electroplating power supply

380V three phase DC rectifier

Produkt-Beschreibung

12V 1000A Plating Rectifier for Copper Electroplating 380V Three Phase Input High Efficiency DC Power Supply

This 12V 1000A rectifier is designed for copper electroplating and other high-current electrochemical processes. It adopts advanced IGBT technology to ensure stable output, high efficiency, and low ripple, which helps improve coating quality and consistency. The unit supports 380V three-phase input and provides precise control of both voltage and current, making it suitable for various plating applications.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-1000A continuously adjustable
- Power: Max.12KW (12V *1000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
