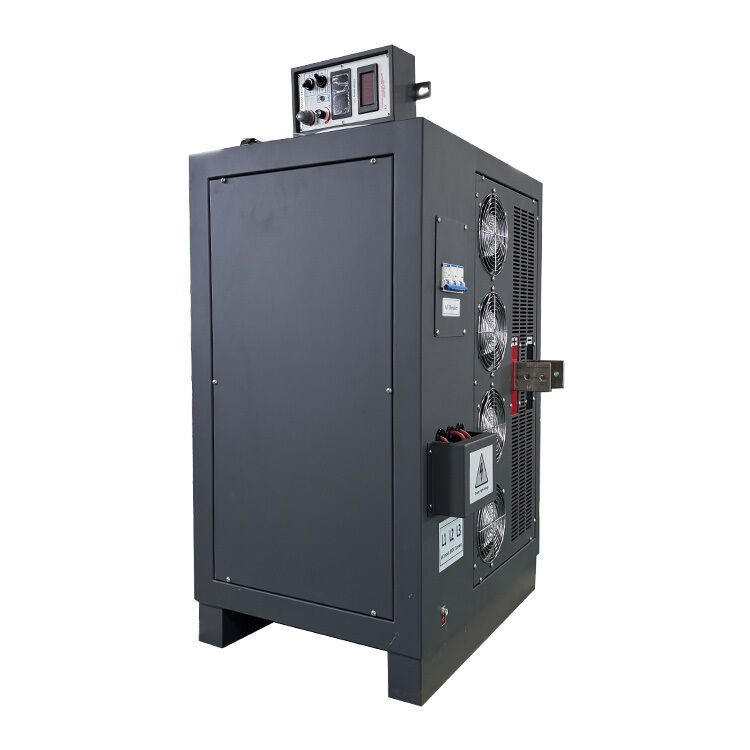

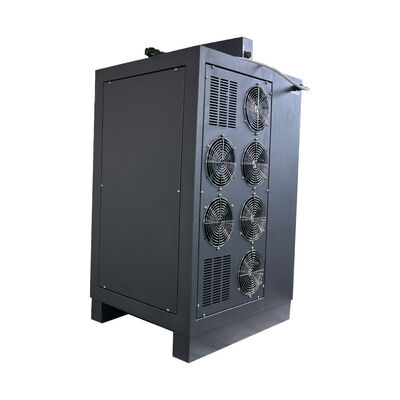

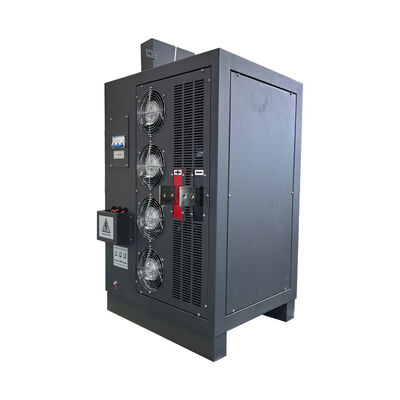

Name: 30V 1500A Zinc Plating Rectifier 380V Three Phase DC Power Supply
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKD30-1500CVC
Price: 2,300.00 USD
Availability: InStock

Markenbezeichnung:	Xingtongli
Modellnummer:	GKD30-1500CVC
MOQ:	1Stk
Preis:	2200-2400$/unit
Verpackungsdetails:	Standard-Exportpaket aus starkem Sperrholz
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE ISO9001

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Hervorheben:

30V 1500A zinc plating rectifier

380V three phase DC power supply

high voltage DC power supply with warranty

Produkt-Beschreibung

30V 1500A Zinc Plating Rectifier 380V Three Phase DC Power Supply

The 30V 1500A zinc plating rectifier is engineered to provide stable and efficient DC power for industrial zinc electroplating applications. With a 380V three-phase AC input, it delivers precise constant current and constant voltage output to ensure uniform coating quality and high production efficiency. Built with advanced IGBT switching technology, this rectifier features low ripple, high efficiency, fast response, and multiple protection functions, making it an ideal power solution for continuous zinc plating production lines.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-30V continuously adjustable
- Current: DC 0-1500A continuously adjustable
- Power: Max 45KW (30V *1500A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.

Umbauten:

Einzelheiten Zu Den Produkten

Haus > Produits >

Hochspannungsdc-Stromversorgung

30V 1500A Zinc Plating Rectifier 380V Three Phase DC Power Supply

Alle Kategorien

30V 1500A Zinc Plating Rectifier 380V Three Phase DC Power Supply

Markenbezeichnung:	Xingtongli
Modellnummer:	GKD30-1500CVC
MOQ:	1Stk
Preis:	2200-2400$/unit
Verpackungsdetails:	Standard-Exportpaket aus starkem Sperrholz
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Markenname:

Xingtongli

Zertifizierung:

CE ISO9001

Modellnummer:

GKD30-1500CVC

Min Bestellmenge:

1Stk

Preis:

2200-2400$/unit

Verpackung Informationen:

Standard-Exportpaket aus starkem Sperrholz

Lieferzeit:

5-30 Werktage

Zahlungsbedingungen:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit:

200 Set/Sets pro Monat

Hervorheben:

30V 1500A zinc plating rectifier

380V three phase DC power supply

high voltage DC power supply with warranty

Produkt-Beschreibung

30V 1500A Zinc Plating Rectifier 380V Three Phase DC Power Supply

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-30V continuously adjustable
- Current: DC 0-1500A continuously adjustable
- Power: Max 45KW (30V *1500A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
